    How to view point details in chart visualization

    To see the full data corresponding to selected points of the chart, first open the detail panel by clicking in the side menu. Then turn on box or lasso selection mode using plotly menu bar.

    Fig. 1: Lasso selection menu item
    Fig. 1: Lasso selection menu item

    Select one or more points. You can apply multiple selections holding Shift key. The detail panel will show full data for all points inside all selections.

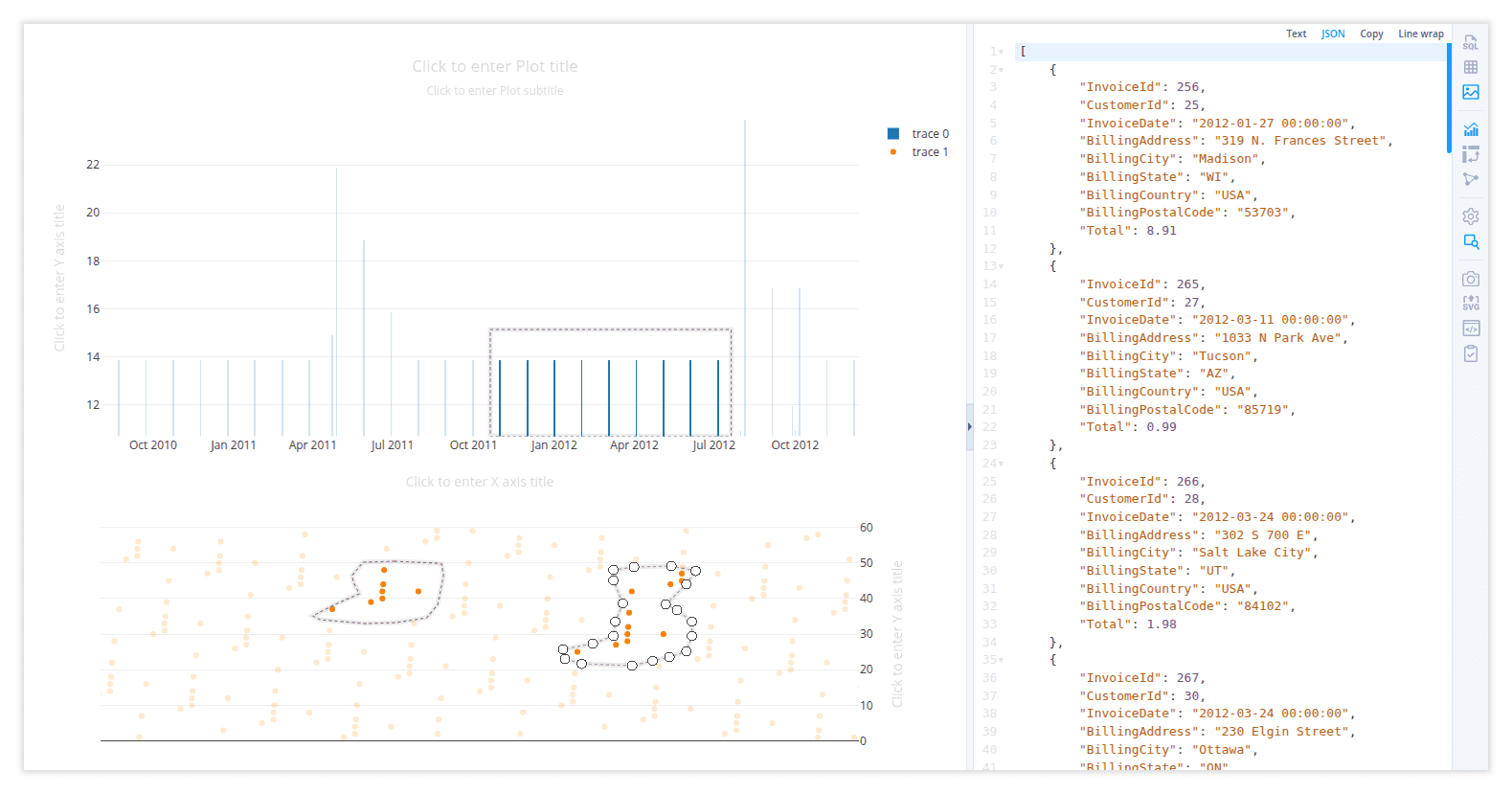

    Fig. 1: Viewing details of selected points
    Fig. 1: Viewing details of selected points

    Double click in chart area to remove selections.
